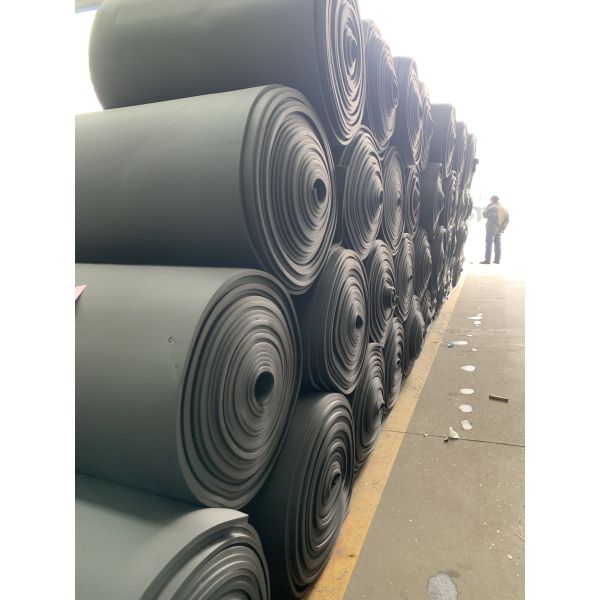

B1/B2 Fire Rated Rubber Foam Insulation For Pipes, Equipment & Air Conditioners
Rubber foam is a flexible, closed-cell insulation material known for its softness, bendability, and resistance to extreme temperatures, flame, and moisture. With low thermal conductivity, it effectively reduces heat loss in pipes and containers across industries such as HVAC, construction, chemical, textile, metallurgy, automotive, and electrical. It is easy to install, offers a clean appearance, and is dust-free, mold-resistant, and durable, making it a versatile insulation solution.
| Item |
Unit |
Specification |
Standard |
| Density |
Kg/m3 |
40-50 |
GB/T 6343 |
| Temperature |
C° |
-40-110 |
GB/T 17794 |
| Flammability |
|
Class-0 |
BS 476:Part 6 |
| Oxygn Index |
% |
>=40 |
GB/T 2406 |
| SDR |
|
<=65 |
GB/T 8627-1999 |
Conductivity factor
-20C°
0C°
40C° |
W/M·K |
<=0.031
<=0.034
0.036 |
GB/T 10294 |
Water vapor permeability
factor |
|
>=1.0x106 |
GB/T 17146-1997 |
| Coeffcien |
g/(m.s.pa) |
<=1.96x10-11 |
|
| Water absorption ratio in vacuum |
% |
<=10 |
GB/T 17794-2008 |
| Dimension stability 105+/-3C°,7d |
% |
<=10 |
GB/T 8811 |
| Crack resistance |
N/cm |
>=2.5 |
GB/T 10808 |
Compression resilience ratio
Compression ratio 50%
Compression time 72h |
% |
>=70 |
GB/T 6669 |
| Anti-ozone |
|
Not cracking |
GB/T 7762 |
| Aging resistance |
|
Slightly crumpling,no cracks
No pin holes,not deforming |
GB/T 16259 |
Rubber foam insulation is a flexible closed-cell material with excellent thermal insulation, waterproofing, and shock absorption. It is easy to cut and bend, fitting irregular pipes and equipment, and offers stable performance with low thermal conductivity. It is moisture-resistant, mold-free, and durable. Widely used for HVAC pipes, water supply/drainage, industrial equipment, storage tanks, air ducts, and building insulation. B1 grade is ideal for indoor applications.
