Industrial Furnace Calcium Silicate Insulation Board High Temperature Cal Sil Board

Name: Industrial Furnace Calcium Silicate Insulation Board High Temperature Cal Sil Board
Brand: LEADSUN
Price: 2.0 USD

Buy cheap Industrial Furnace Calcium Silicate Insulation Board High Temperature Cal Sil Board product

Brand Name : LEADSUN

Model Number : 1000C 1100C

Certification : ISO CE

Place of Origin : CHINA

MOQ : 10 pcs

Price : 2.0usd - 15.0usd

Payment Terms : L/C,T/T,D/P,Western Union

Supply Ability : 2000 m3/month

Delivery Time : 10 days

Packaging Details : Carton box + Pallet

Refractoriness : 1000-1100C

Size : customizable

Package : carton box + pallet

Type : board,pipe

Color : White

Density : 240-800kg/m3

Contact Now

High Temperature Calcium Silicate Insulation Board for Industrial Furnaces

Leadsun Calcium Silicate Board is an asbestos-free thermal insulation material designed for continuous service temperatures from 650°C to 1100°C. It is lightweight, durable, and offers low thermal conductivity and high mechanical strength. Available in 650, 1000, and 1100 grades, it is widely used as backup insulation in steel, petrochemical, ceramic, cement, and glass industries, and for fire protection in construction. It helps improve energy efficiency, production performance, and workplace safety. In building applications, it is also suitable for ceilings, fireproof walls, and decorative sound-absorbing panels.

Physical index	Unit	L-200	L-230	L-250	L-270
Density	kg/m3	200±10%	230±10%	250±10%	270±10%
Cold Crushing Strength	Mpa	≥0.60	≥0.80	≥0.90	≥1.00
Flexural Strength	Mpa	≥0.35	≥0.45	≥0.50	≥0.55
Maximum Service Temp.	℃	1000℃	1000℃	1000℃	1000℃
Linear Shrinkage(1000℃x16hrs)	%	≤2	≤2	≤2	≤2
Thermal Conductive	w/(m.k)	200℃ 0.075 400℃ 0.098 600℃ 0.150 800℃ 0.210	200℃ 0.085 400℃ 0.100 600℃ 0.152 800℃ 0.214	200℃ 0.095 400℃ 0.108 600℃ 0.156 800℃ 0.216	200℃ 0.098 400℃ 0.110 600℃ 0.158 800℃ 0.218
Compression Strength at 10% Deformation after 16hrs*1000℃	Mpa	0.32	0.40	0.45	0.50
Porosity	%	90.80	90.60	90.40	90.00
Moisture Content	%	3-5%
PH Value	%	8-9%
Color	/	white
Surface Condition	/	1.Original dimple pattern. 2.Double sanded, smooth and good flatness.

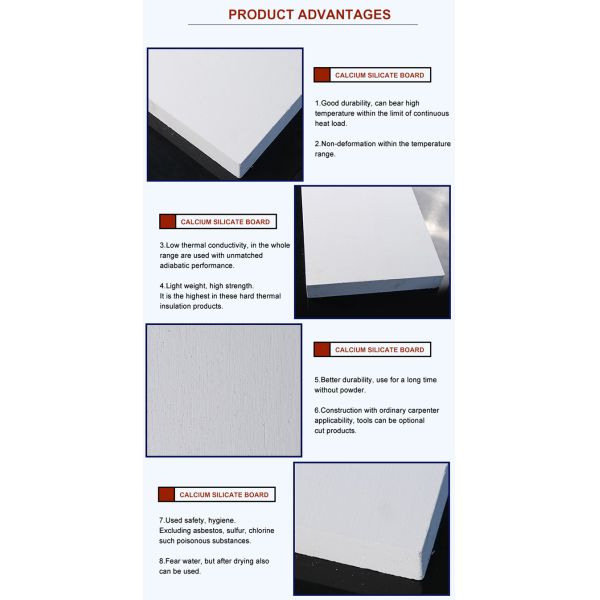

Features

High temperature resistance up to 1100°C
Asbestos-free and environmentally safe
Low thermal conductivity for excellent insulation
High mechanical strength with good flexural and compressive performance
Lightweight and easy to handle for fast installation
Moisture resistant, stable in wet conditions
Excellent dimensional stability under thermal cycling
Suitable for both industrial and construction applications

Applications

Furnace backup insulation (reheating, annealing, rotary kilns)
Steel & metallurgy (ladles, tundishes, hot metal cars)
Petrochemical (heaters, reformers, pipe supports)
Ceramic & cement (tunnel kilns, nozzles, flow gates)
Building construction (fireproof ceilings, wall insulation)
Power & HVAC (boilers, duct lining)

Standard Sizes:

Thickness: 25mm, 50mm, 75mm, 100mm (custom thickness available)
Dimensions: 1200mm × 600mm, 1200mm × 1200mm, or as customized

Industrial Furnace Calcium Silicate Insulation Board High Temperature Cal Sil Board
