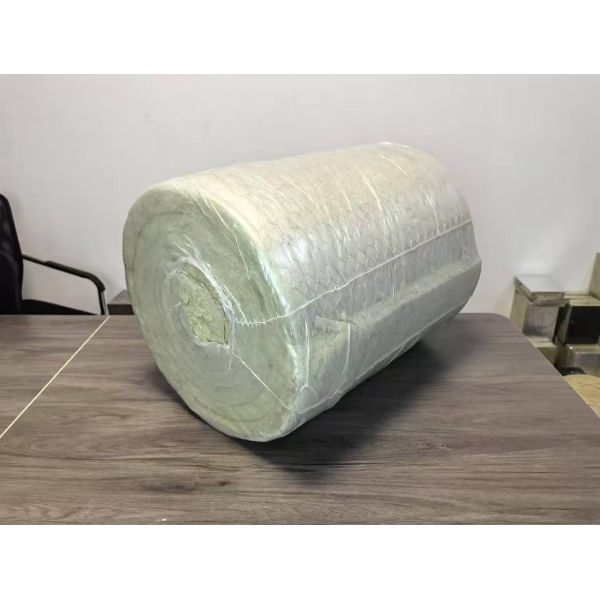

Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil

Name: Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Brand: SUNWOOL
Price: 1 USD

Buy cheap Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil product

Brand Name : SUNWOOL

Model Number : Basalt Blanket

Certification : ISO CE

Place of Origin : China

MOQ : 50 Rolls

Price : Negotiable

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 10000 rolls/month

Delivery Time : 7 days

Packaging Details : Plastic bag

Refractoriness : 750C

Size : customizable

Package : plastic bag

Type : board,pipe blanket

Blanket density : 50-120kg/m3

Board density : 40-200kg/m3

Pipe density : 80-150kg/m3

Contact Now

Thermal Insulation Rockwool Roll With Wire Mesh & Alumina Foil Mineral Wool Blanket For Insulation

The Leadsun series rock wool mat is stitched with galvanized or stainless steel mesh, ideal for thermal insulation, fire prevention, and sound absorption in storage tanks, boilers, and large-diameter pipelines. It can also be laminated with aluminum glass cloth. We offer low chlorine options for specific industrial needs.

PARAMETER		LDS 40-80	LDS 90-120	UNIT	STANARD
Density		40-80	90-120	KG/M³	ASTM C167
Dimensions		Excess Permitted			ASTM C592-24
Thermal Conductivity	24℃	0.035	0.033	W/m.k	ASTM C177
	38℃	0.037	0.035
	70℃	0.040	0.038
	100℃	0.046	0.042
	150℃	0.051	0.048
	200℃	0.064	0.056
	250℃	0.076	0.063
	300℃	0.080	0.070
Recommended temperature		650	650	℃	ASTM C411-05 ASTMC447-03
Maximum use temperature*		750	750	℃	ASTMC411
Surface burning characteristics	Smoke developed index	10			ASTM E84-24
	Flame spread index	0			ASTM E84-24
Combustion Performance		Non-flammable,fire rating A1			EN13501-1 BS476 Part4 GB/T 19686-2015 GB 8624-2012
Volumetric hygroscopic rate		1≤		%	ASTM C1104/1104M
Mass hygroscopic rate		1≤		%	ASTM C1104/1104M
Linear shrinkage	length	0.6		%	ASTM C356
	Width	0.4
	Thickness	-0.7
water Vapor sorption by weight		0.3		%	ASTM C1104/1104M
Water absorption		<0.2		KG/M²	EN13472
		<20		KG/M³
Chloride ion content(Optional)		9		PPM	ASTM C871
Hot-Surface Performance		No warping flaming glowing melting or fiber degradation during hot surface exposure			ASTM C447-15
External Stress Corrosion Cracking Tendency of Austenitic Stainless Steel		No Cracks			ASTM C795-08(2023)
Non-Fibrous(Shot) Content		9.9		%	ASTM C592-24
Average Fiber Diameter		3.6		um	GB/T 5480-2017
Hydrophobic Nature		99.9		%	GB/T 10299-2011
Non combustible		NO			ASTM C592-24
Acidity Coefficient(MK)		2.01			GB/T 19686-2015
Sound Absorption Coefficient		NRC=1			ASTM C423-23e1
Odor Emission		0			ASTM C592-24
Radioactive		Internal IRRADIATION INDEX Ira 0.3 External IRRADIATION INDEX Ir 0.4			GB/T 19686-2015
Formaldehyde Release Amount		0.2			GB/T 19686-2015
Corrosiveness of Steel, Copper,and Aluminum		Steel Sheet 39.5 Copper Sheet 40 Aluminum Sheet 27.5			ASTM C592-24
Fungi Resistance		No mold growth under a 40x microscope			ASTM C592-24
Health and safety	Asbestos	No asbestos			HJ/T206, ISO 22262-1 NIOSH 9002
	Irritating odor	No Irritating odor			ASTM C665
	Bacteria	No Bacteria			ASTM C1338
PH		8.5			ASTM C871

Note:

* Standard product width include 24" and 48" (600mm and 1200mm)

** Thickness may vary by request location. Suggest use two layers half thickness to instead when thickness more than 200mm.

*** Standard product lengths include 10' and 16'(3m and 5m),other lengths can be customized.

FeaturesIndustrial thermal insulation rock wool felt is specially designed for industrial insulation applications. It offers high temperature resistance, excellent corrosion resistance, stable chemical properties, and superior sound absorption and noise reduction. The product achieves A1 fire resistance rating.
Optional types include hydrophobic and low-chlorine rock wool. Surface facing materials such as aluminum foil and fiberglass cloth (ALGC) can be applied upon request.
